Foundation Survey or Slab Survey During Construction

New Construction Foundation Survey

The foundation survey or slab survey during construction is used to determine that the foundation has been placed properly on the building lot and at the proper elevation. The survey is done once the foundation is complete and it is an important part of the construction process.

The foundation should be placed on the lot in accordance with zoning requirements such as setbacks from the property line and elevation above street level. The foundation survey also affirms that the foundation or slab has been placed according to the site plan and at the right elevation according to site plan.

In some cases the site plan may call for a higher elevation than required by zoning requirements and that should be accounted for in the survey.

foundation survey illustration

Survey at Land Purchase Closing

Before any real estate transaction is closed, a survey is ordered to assure that the property boundaries are what they were represented to be by the seller.

Survey After Foundation or Slab

Since the location of an improvements on a property is part of the survey, new construction will have to be added to the survey at the time the foundation or slab is finished.

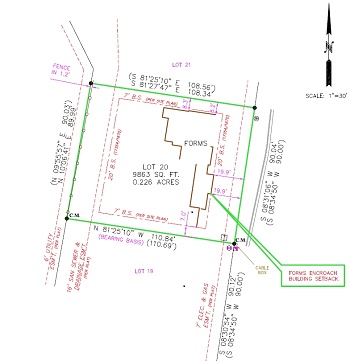

As indicated on the survey to the left, the forms for the foundation are found to encroach on the required setback and will have to be corrected.

Construction Lenders

Construction lenders require a foundation or slab survey before paying the first draw. Since the foundation must meet setback requirements on all sides of the lot, the governmental construction inspector will use the foundation survey to verify that the foundation has been positioned properly on the lot. If there is any discrepancy it must be addressed at this time.

All lenders require a land survey of the vacant land before construction and a foundation survey after the foundation is poured to assure proper placement of the house on the lot and at the right elevation. Typically, the survey must be prepared by a licensed surveyor. The survey must be dated not more than (90) days prior to the date of the first draw disbursement.
